V-BMS Master Modules

Up To 1500V & up to 3000A

V-BMS Master module monitors battery current with shunt resistor & hall sensor and controls connection to the charger & load over 2 separate paths via internal MOSFET’s. It also serves as a master module for the battery management system; sharing & gathering data to/from slave modules and evaluating warnings & alarms.

  • Connection with Bluetooth and Wireless
  • Supports up to 200 BMS Modules & up to 16 parallel strings
  • Fully programmable CANBus interface & charger control functions
  • Fully plug & play; detects connected modules, number of cells, number of sensors, number of strings and string shunts
  • Monitoring and control the systemwith RS-485, USB, Wi-Fi and Bluetooth

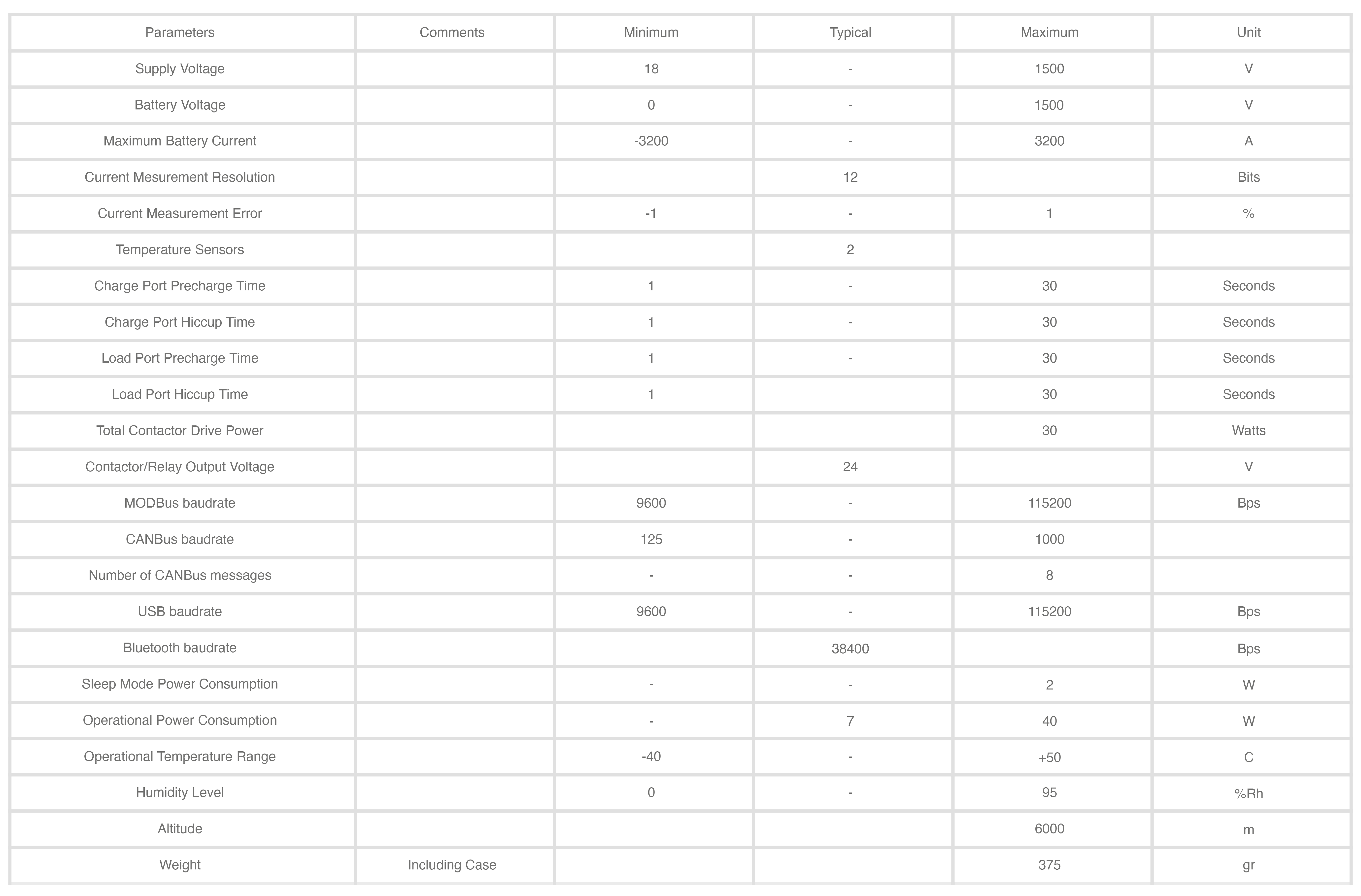

  • All module configuration can be managed using cross-platform V-BMTECHNICAL DAT
